Transmission Assembly Line: Process, Equipment, and Engineering Considerations
In modern automotive manufacturing, the transmission assembly line represents one of the most technically demanding production systems. Transmissions require precise component positioning, controlled fastening, and rigorous functional verification. For automotive manufacturers and component suppliers, understanding how these production systems are designed and integrated is essential for achieving consistent quality, production traceability, and reliable manufacturing output. This article provides a technical overview of transmission assembly line design, equipment, and engineering considerations.
What Is a Transmission Assembly Line?
A transmission assembly line is an integrated manufacturing system designed to assemble transmission components into a complete, functional unit through a defined sequence of production operations. These systems combine mechanical equipment, assembly stations, conveyors, fastening systems, testing equipment, and control software into a coordinated production flow.
Modern transmission assembly lines are engineered to handle complex product architectures while maintaining controlled positioning and process verification. The production system must accommodate gears, shafts, bearings, housings, synchronizers, and related components with precise assembly conditions. Depending on production requirements, a transmission assembly line may incorporate manual workstations, semi-automated stations, fully automated stations, or a combination of all three.
Transmission Assembly Manufacturing Process
The transmission assembly process follows a structured sequence designed to ensure correct component installation and verify assembly quality at appropriate production stages. While exact sequences depend on the transmission type and product design, typical operations include housing preparation, bearing installation, gear and shaft assembly, synchronizer installation, fastening, lubrication, inspection, and functional testing.
Core Assembly Operations
Transmission assembly begins with component preparation and housing preparation. The transmission housing is positioned on a production pallet or fixture, and internal components are installed in a controlled sequence. Bearing installation, gear placement, and shaft assembly require precise positioning to maintain proper clearances and alignment. Fastening operations secure covers, brackets, and internal components according to specified torque requirements.
Inspection and Testing Stages
Quality verification is integrated throughout the assembly process. Leak testing verifies sealing performance of the transmission housing and fluid circuits. Vision Inspection Systems check component presence, orientation, and assembly correctness. End-of-line testing validates functional performance after major assembly operations are completed. These verification stages help identify process deviations before the product moves to the next manufacturing stage.
Main Equipment and Systems in Transmission Assembly
A transmission assembly line consists of multiple equipment systems that must work together as an integrated production unit. The equipment architecture should be designed around the manufacturing process rather than individual machines.
Assembly Stations and Fixtures
Assembly stations are dedicated workstations where specific manufacturing operations are performed. These stations may be manual, semi-automatic, or fully automated. Automated assembly stations integrate mechanical mechanisms, sensors, pneumatic or servo systems, and PLC control to perform operations with limited manual intervention. Fixtures and tooling position and secure transmission components during assembly, providing stable positioning, repeatable locating, and appropriate rigidity for fastening and inspection operations.

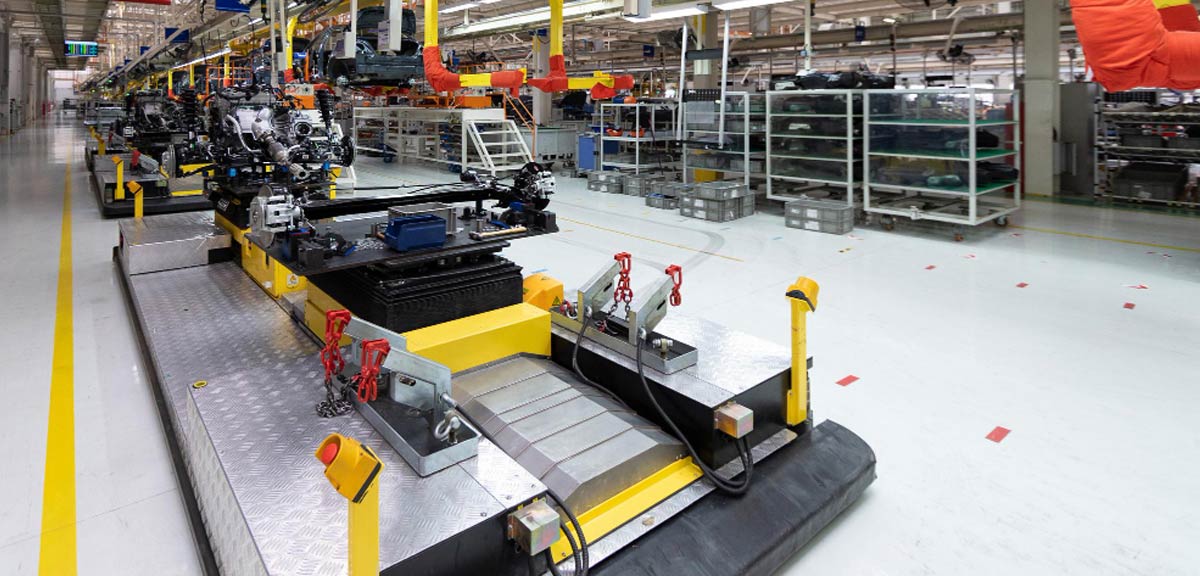

Conveyor and Material Handling Systems
Conveyor Systems transport transmission assemblies between stations while maintaining product positioning. Pallet conveyor systems are commonly used in transmission assembly because they provide controlled positioning and support product identification. Chain conveyors, roller conveyors, and transfer systems may also be applied depending on product weight, production flow, and layout constraints. Material handling must be designed together with station layout and production flow to ensure efficient operation.
Torque Tightening Systems
Torque tightening is a critical process in transmission assembly. Automated torque systems control and monitor fastening operations, providing torque control, angle monitoring, fastening sequence control, and result recording. Torque data can be integrated with production control systems for traceability when required. The specific torque values must be determined from product engineering requirements.
Testing and Inspection Equipment
Leak Testing Equipment verifies sealing performance of transmission housings and fluid circuits. Vision inspection systems use cameras and image processing to check component presence, orientation, and assembly verification. End-of-line testing equipment validates functional performance after assembly completion. These systems provide consistent inspection results and support production traceability.
Technical Considerations for Transmission Assembly Line Design
Designing a transmission assembly line requires careful evaluation of production requirements, product characteristics, and engineering constraints. The production system should be treated as an integrated system covering product flow, material flow, information flow, quality control, and maintenance.
Production Takt Time and Line Balancing
Production takt time represents the required production rate needed to meet customer demand. Takt time is used to determine workstation workload, number of stations, production capacity, and automation requirements. Cycle time, by contrast, represents the actual time required to complete a manufacturing operation. Line balancing distributes manufacturing operations across different assembly stations to maintain a balanced production flow and reduce excessive idle time or workstation overload. Long-cycle testing operations may require parallel testing stations or appropriate buffering depending on production requirements.
Automation Level and Workstation Design
The appropriate automation level depends on production volume, product complexity, quality requirements, investment considerations, and future production plans. Automated assembly stations are commonly used when consistent process control, repeatability, and production traceability are important. Workstation design should consider operator access, ergonomics, tool access, maintenance accessibility, and safety requirements. Semi-automated systems may combine manual operations with automated fastening or testing where appropriate.
Quality Control and Error-Proofing
Quality control should be integrated throughout the assembly process rather than added after equipment installation. Torque monitoring, vision inspection, leak testing, and functional testing provide process verification at appropriate production stages. Error-proofing methods such as part presence detection, orientation checking, fixture interlocks, and sequence control help prevent common assembly errors. The objective is to identify process deviations as early as possible.
PLC Control and MES Integration
PLC systems serve as the central control system for automated assembly equipment, coordinating sensors, actuators, motors, servo systems, pneumatic systems, robots, safety devices, and testing equipment. PLC programming defines production sequences, equipment interlocks, fault handling, and communication between devices. MES integration connects production equipment with manufacturing management systems for production data collection, equipment status monitoring, production tracking, and process traceability. Traceability architecture should be defined before equipment and control system implementation.
Applications in Automotive Manufacturing
Transmission assembly lines are used by automotive OEMs and transmission manufacturers for producing manual transmissions, automatic transmissions, and related drivetrain components. These production systems are also relevant for automotive component suppliers manufacturing transmission subassemblies or related precision components.
Beyond complete transmission assembly, similar equipment and automation technologies apply to Engine Assembly Line, electric drive assembly, and other powertrain manufacturing applications. The engineering principles of controlled positioning, torque control, leak testing, vision inspection, and production traceability are common across powertrain assembly systems.
Supplier Selection for Transmission Assembly Lines
When evaluating a transmission assembly line supplier, procurement and engineering teams should assess the supplier’s capability as a system integrator rather than only as an equipment manufacturer. The supplier must understand the manufacturing process, not just individual machines.
Engineering and Integration Capability
Key evaluation factors include mechanical engineering capability, electrical control development, PLC programming, automation integration, and testing system integration. The supplier should demonstrate experience with conveyor systems, torque tightening, leak testing, vision inspection, and production traceability. Documentation quality, installation and commissioning support, and operator training are also important considerations.
Project Execution and Support
Turnkey project capability covers process planning, production line layout, equipment design, fixture and tooling development, electrical control systems, equipment manufacturing, system integration, installation, commissioning, and production trial operation. After-sales technical support and equipment maintainability should be evaluated during supplier selection. The lowest equipment purchase price should not be the only evaluation criterion.
Hongbo Automation Capability for Transmission Assembly Lines
Hongbo Automation specializes in automotive intelligent manufacturing equipment and turnkey production line solutions. The company provides design, manufacturing, installation, commissioning, and integration services for automotive manufacturers and auto parts suppliers.
Relevant capabilities include transmission assembly line design, Powertrain Assembly systems, engine assembly lines, and electric motor assembly lines. Hongbo Automation provides automated assembly stations, torque tightening systems, leak testing equipment, vision inspection systems, conveyor systems, and AGV logistics systems. The company supports PLC control, MES integration, and production data management as part of complete production line solutions.
Hongbo Automation has delivered an automotive powertrain assembly project covering engine and transmission assembly automation. The project scope included automated assembly stations, torque tightening systems, leak testing equipment, conveyor integration, and PLC control. Engineering scope covered production line design, mechanical equipment manufacturing, electrical control development, and installation and commissioning.
Conclusion
A transmission assembly line is a complex manufacturing system that requires careful planning, integrated equipment design, and systematic quality verification. Successful production depends on how assembly stations, fixtures, conveyors, torque control, inspection systems, testing equipment, PLC control, and MES integration work together as a complete manufacturing system. Manufacturers should evaluate production takt time, line balancing, automation level, quality control, and traceability requirements during the initial design phase.
For automotive manufacturers and component suppliers planning a new transmission assembly line or upgrading existing production capacity, working with an experienced automation integrator is essential. Hongbo Automation provides turnkey transmission assembly line solutions covering design, equipment manufacturing, system integration, installation, and commissioning. Contact Hongbo Automation to discuss your transmission assembly requirements and manufacturing objectives.
Frequently Asked Questions
What is a transmission assembly line and how does it work?
A transmission assembly line is a production system where transmission components are sequentially assembled into a complete unit. It uses automated stations, conveyors, and robotic systems to perform tasks like gear installation, torque converter mounting, and casing assembly. Each station is synchronized to ensure precise tolerances and quality control throughout the process.
What are the key components of a modern transmission assembly line?
Key components include automated guided vehicles (AGVs) or conveyors, robotic arms for part handling, precision fastening tools, leak testing stations, and vision inspection systems. Additionally, programmable logic controllers (PLCs) and manufacturing execution systems (MES) manage process control, traceability, and data collection to ensure consistent assembly quality.
How do you optimize cycle time in a transmission assembly line?
Optimization involves balancing station workloads, reducing non-value-added motions, and implementing parallel processing where feasible. Use simulation tools to model line dynamics and identify bottlenecks. Additionally, integrate real-time monitoring to adjust takt time, and employ quick-change tooling and automated error-proofing to minimize downtime and rework.
What are the common quality control methods used in transmission assembly?
Common methods include in-process leak testing, torque monitoring with data logging, dimensional checks via coordinate measuring machines (CMMs), and end-of-line functional testing. Vision systems and sensors verify component presence and orientation. Statistical process control (SPC) is applied to detect deviations early and ensure compliance with strict tolerances.
What are the costs associated with setting up a transmission assembly line?
Costs vary significantly based on automation level, line capacity, and complexity. Major expenses include machinery, robotics, tooling, conveyor systems, and control software. Also consider installation, commissioning, training, and maintenance. For a mid-volume line, expect multimillion-dollar investments, with payback periods dependent on throughput and labor savings.
